Model UDK1 - All-in-One Ultra Wideband Demo Kit

$5,541.00 Excl. VAT

From the creators of Qorvo's DWM1001C and PANS RTLS Demo Kit Features Devices with preloaded all-in-one firmware stack that provides... Read more Read more

    From the creators of Qorvo's DWM1001C and PANS RTLS

    Demo Kit Features

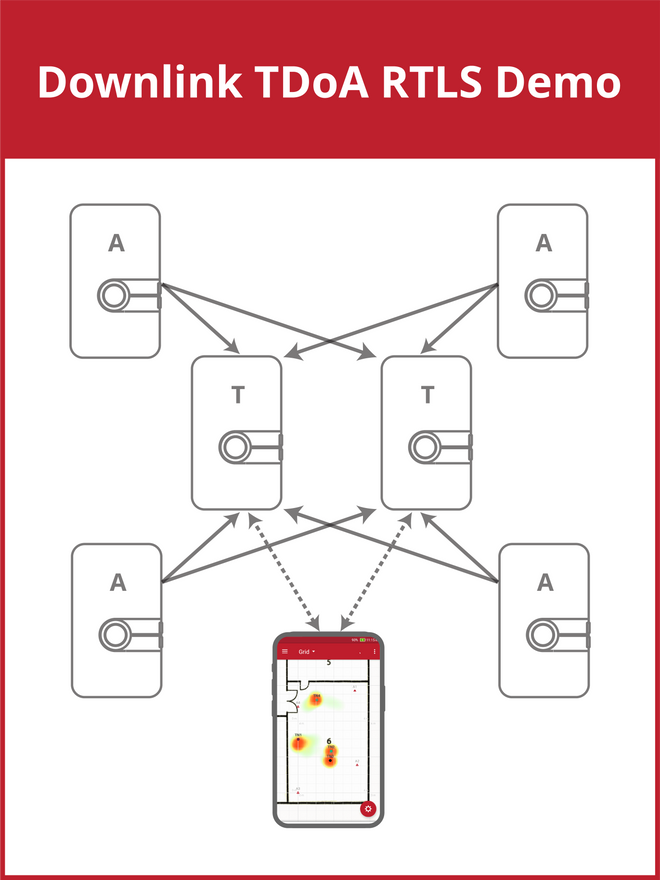

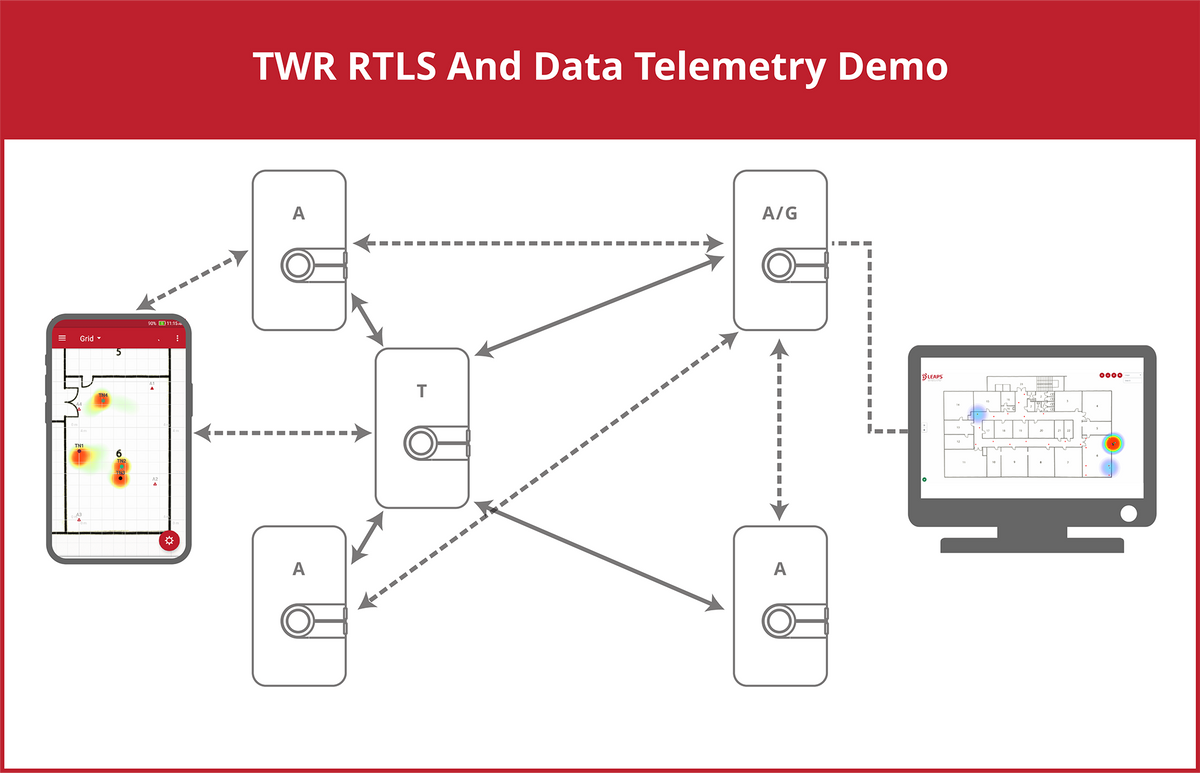

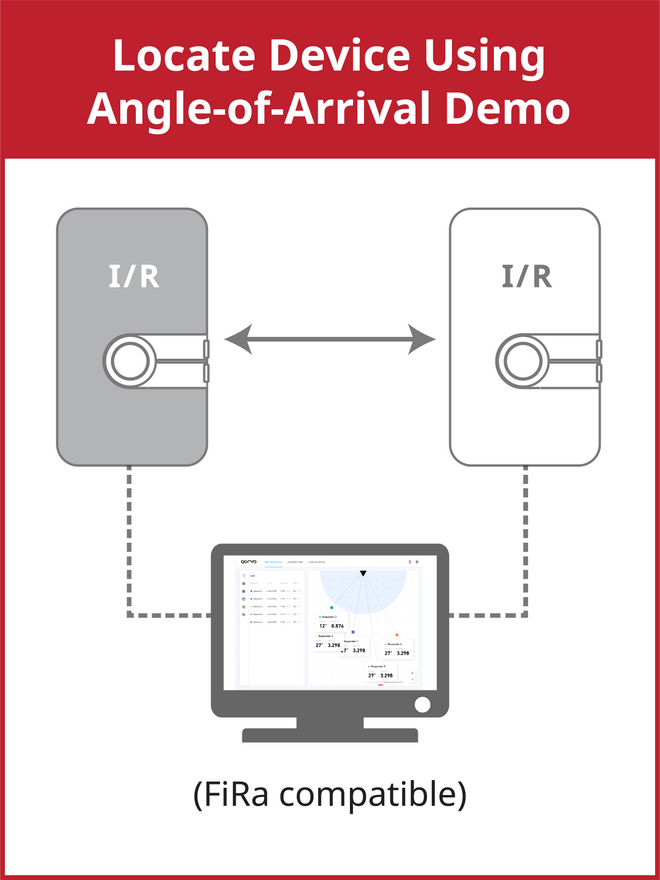

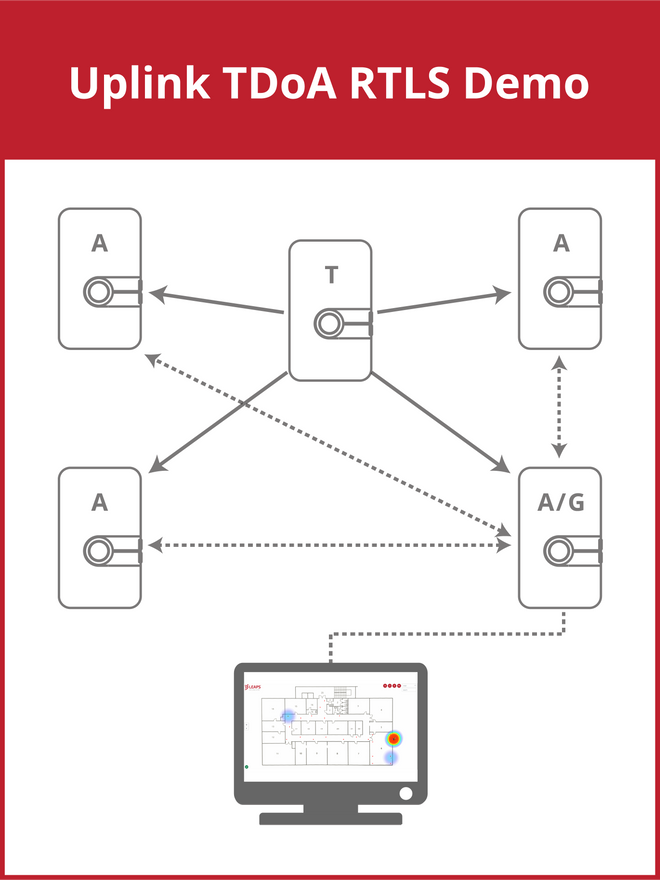

    Devices with preloaded all-in-one firmware stack that provides all possible UWB demos from Nearby Interaction with an iPhone, Angle-of-Arrival location, infrastructure-less proximity between the Tags, real-time location and data telemetry using Two-Way Ranging, Downlink TDoA and Uplink TDoA.

    Click here for the detailed specification

    Click here for the quick start guide

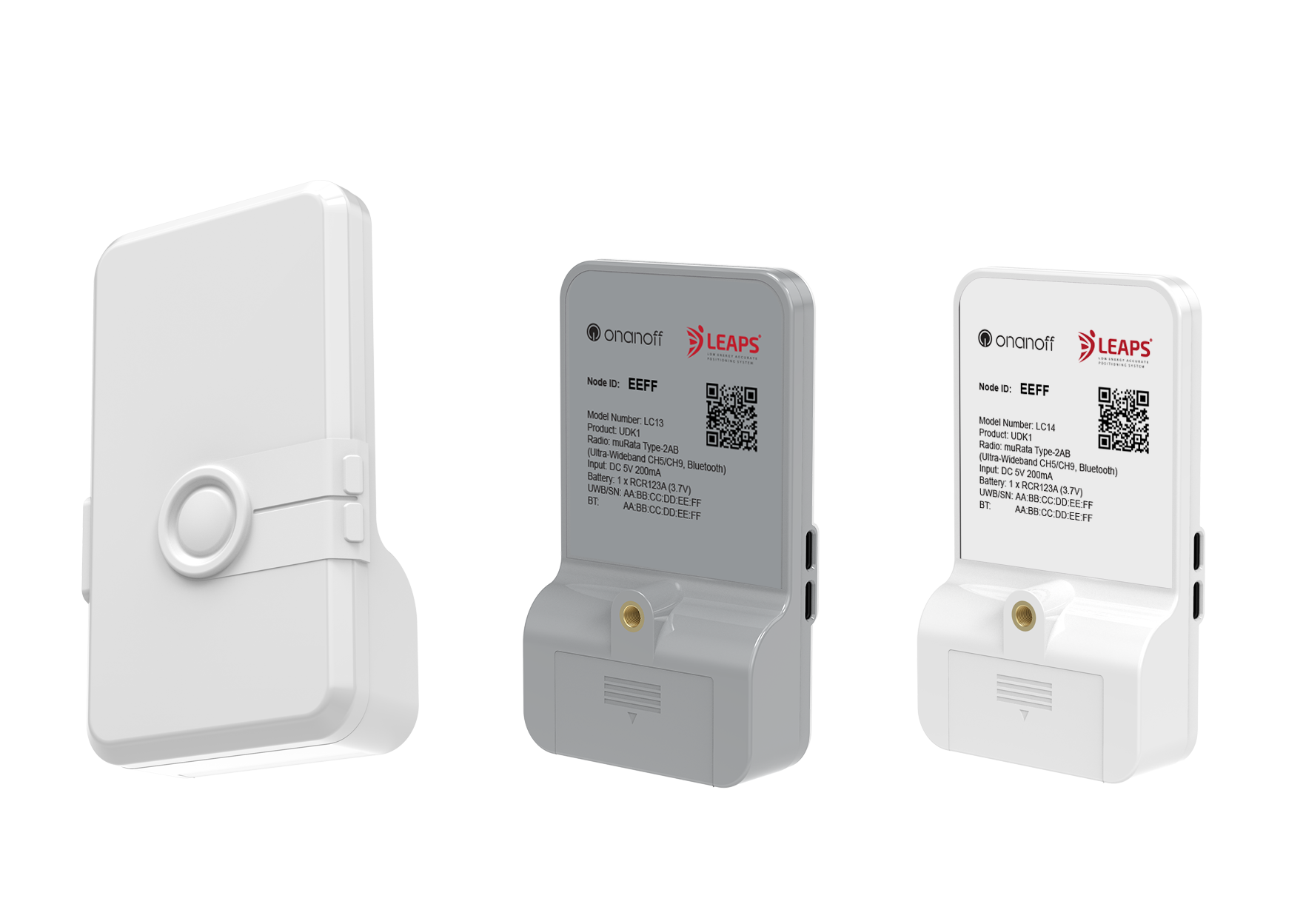

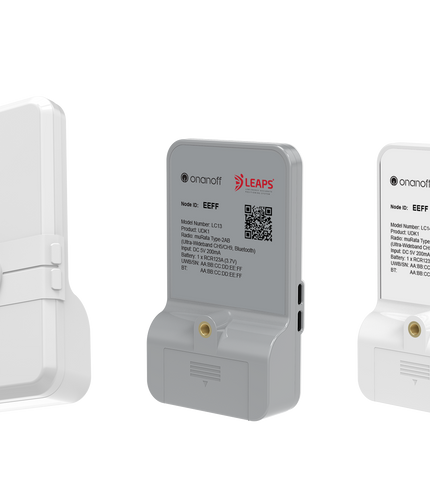

    To be used as a Tag, Anchor and Gateway in a Real-Time Location System using UWB (Ultra-Wideband)

    Specifications
    • Based on muRata Type-2AB SIP (MCU nRF52840 with Bluetooth, UWB QM33120W IC with Japan support compliance, LIS2DW accelerometer, crystals and internal power regulators)
    • Ultra-wideband with integrated non-AoA and AoA antennas. Supported UWB channels: 5 (6.5 GHz) and 9 (8 GHz)
    • Bluetooth with integrated antenna
    • With LNA (Low Noise Amplifier) and PA
      (Power Amplifier) to increase the UWB range
    • 2x Green LEDs and 1x RGB LEDs
    • 3x multifunctional buttons
    • Haptic motor
    • Audio buzzer
    • Extra GPIOs for connection with external sensors or lOs
    • 1x USB device connector
    • 1x USB connector with integrated DAPLink debugger and Virtual COM
    • On-board connector for J-Link debugger
    • NFC tag antenna connector
    • Battery: replaceable RCR123A 3.7V (the
      same as for the MDEK1001). Battery not included.
